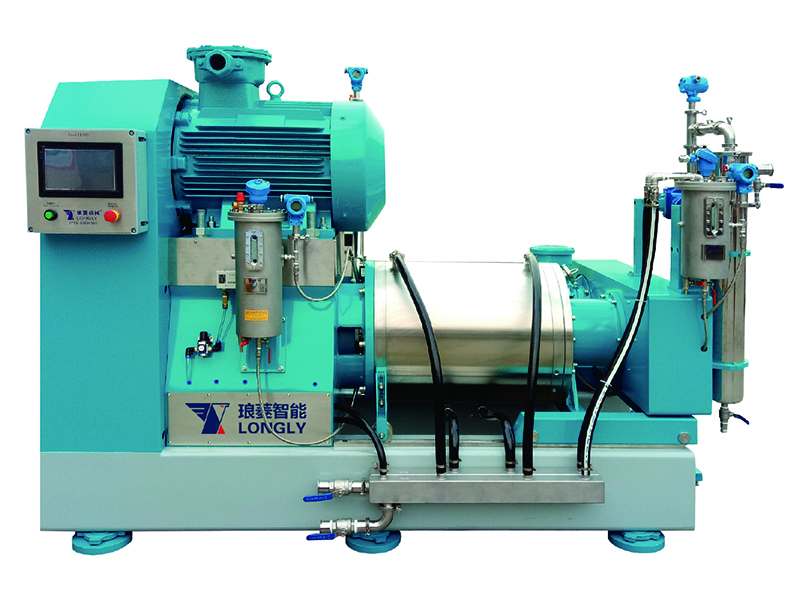

Agitator Bead Mill, NT-S (Dual Power System)

Grinding Chamber Volume: 10L-150L
Fineness: 50nm-500nm
Solvent: water-based, oil-based
Viscosity: ≤3,000cps
Grinding Bead Size: 0.05-0.6mm

Features
  • Dual power system allows that material grinding and separation are carried out independently;
  • Centrifugal separation system requires no screen, preventing blockages;
  • Separation structure is made of imported high polymer materials which have properties of wear resistance, stable performance and low cost;
  • Pin agitator provides results of high efficiency and narrow particle size distribution;
  • Core parts of bead mill can be made of various materials depending on particles, ensuring low wear rate and less production cost;
  • Stable throughput in ultrafine particles or nanoparticles production;
Agitator Bead Mill, NT-S (Dual Power System)
Inquiry
Specifications
Model Grinding Chamber Volume (L) Drive Motor (W) Batch Capacity (L/H) Media Size (mm) Weight (kg) Dimension (mm)
NT-V10S 10 30 30-150 0.05-0.6 approx. 1600 2550x1100x1750
NT-V30S 30 53 60-400 0.05-0.6 approx. 2000 3150x1300x1650
NT-V60S 60 106 150-800 0.05-0.6 approx. 3500 3900x1450x1950
NT-V150S 150 183 300-2000 0.05-0.6 approx. 7200 5050x1620x2245
Applications
  • Cathode Silicon Carbon
  • Printing Inks
  • Inkjet Ink
  • Aluminium Oxide Powder
  • Zirconium Oxide
  • Barium Titanate
  • LTCC & MLCC
Other Products
    1. Agitator Bead Mill, NT-X (Nanometer Range)
    2. Agitator Bead Mill, NT-X (Nanometer Range)

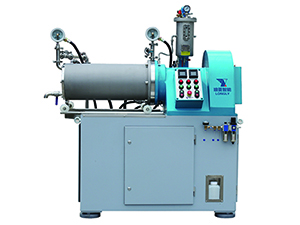

    1. Horizontal Bead Mill, LDM
