Grinding Chamber Volume: 3L-100L
Fineness: 100nm-2μm
Solvent: water-based, oil-based
Viscosity: ≤10,000cps
Grinding Bead Size: 0.3-2.0mm
Selectable Materials: zirconium oxide, polyurethane

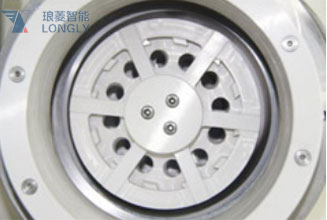

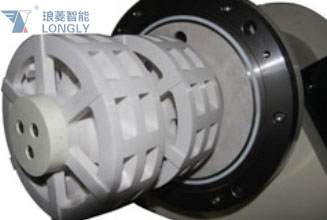

The inner parts from grinding chamber can be assembled using purely ceramic parts or ceramic parts combined with polyurethane parts, metal-free grinding is suitable for grinding materials where contamination-free grinding without metallic discoloration are highly required.
Model | Grinding Chamber Volume (L) | Drive Motor (kW) | Batch Capacity (L/H) | Media Size (mm) | Weight (kg) | Dimension (mm) |
NT-X3 | 3 | 7.5 | 5-58 | 0.3-2.0 | approx. 700 | 1300x700x1600 |
NT-X6 | 6 | 15 | 30-100 | 0.3-2.0 | approx. 880 | 1400x860x1600 |
NT-X30 | 30 | 37 | 60-400 | 0.3-2.0 | approx. 1560 | 1700x1050x1950 |
NT-X100 | 100 | 110/132 | 500-4000 | 0.3-2.0 | approx. 5200 | 2900x1400x2600 |
