Agitator Bead Mill, LSM

Grinding Chamber Volume: 5L-1000L
Fineness: 5μm -15μm
Solvent: water-based, oil-based
Viscosity: ≤20,000cps
Grinding Bead Size: 0.6-2.0mm or 0.9-2.0mm
Selectable Materials: tungsten carbide, polyurethane, zirconium oxide, silicon carbide

Features
  • Combining the characteristics of horizontal bead mill, i.e. simple appearance, compact structure and easy operation;
  • All parts in contact with materials are made of high quality wear-resistant material, ensuring long service life and no discoloration;
  • Centrifugal separation system or dynamic gap separator is available optionally, centrifugal separation system is characterized by high flow discharging, while the dynamic gap separator has self-cleaning function;
  • Advanced technology engineered mechanical seal is cooled by cooling water to ensure safe operation, making it possible to continuous production or batch production, and it is easy to clean;
  • Discharge valve allows for residue-free discharging;
  • Overpressure protection device is equipped to ensure constant pressure in the grinding chamber;
  • Automatic protection system for electrical components;

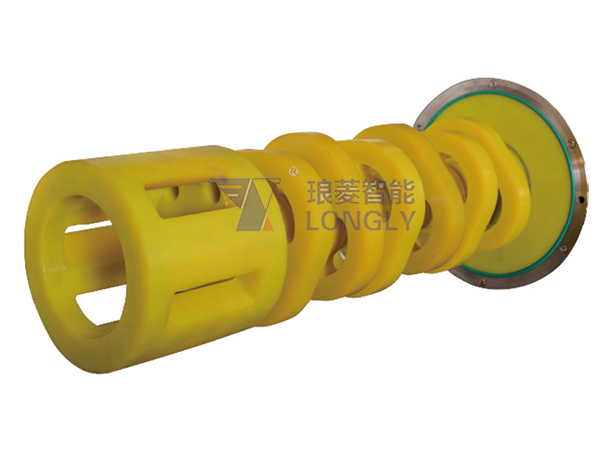

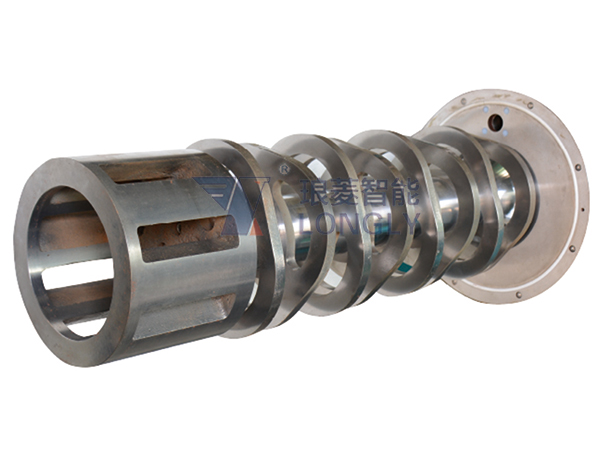

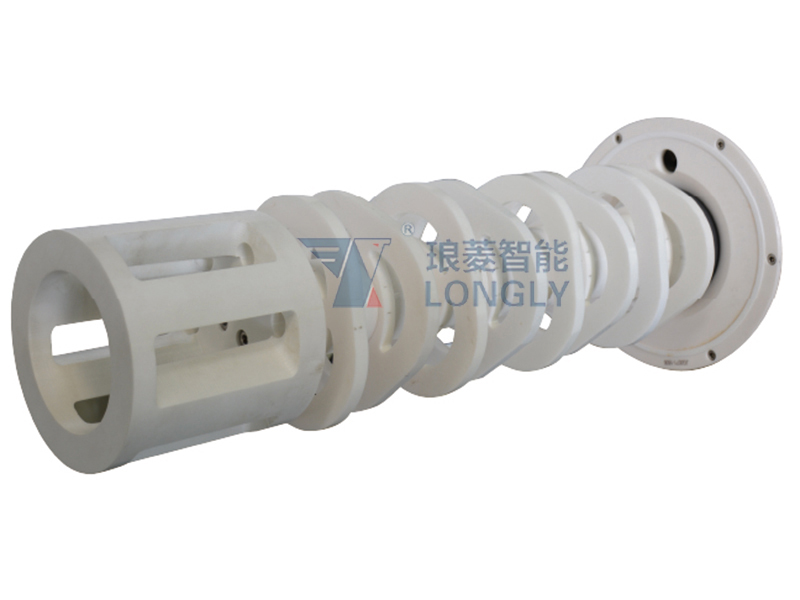

  • A variety of materials is selectable depending on various particles, e.g. super wear-resistant steel, high polymer, polyurethane, ceramic, and hardened steel from Germany. Grinding chamber and inner parts are made of ceramic and PU to guarantee contamination-free production process;

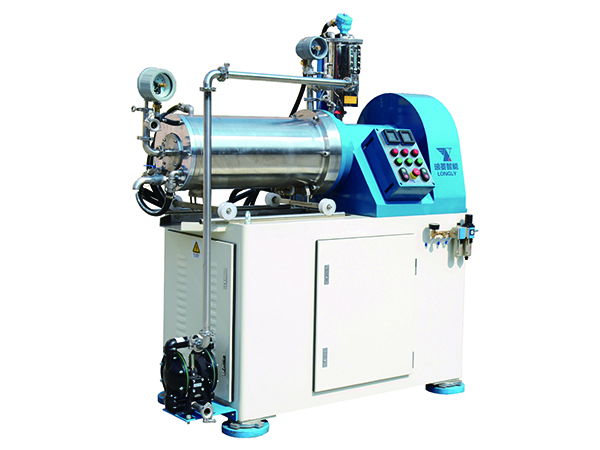

Agitator Bead Mill, LSM
Agitator Bead Mill, LSM Agitator Bead Mill, LSM Agitator Bead Mill, LSM Agitator Bead Mill, LSM
Inquiry
Specifications
Model Grinding Chamber Volume (L) Drive Motor (kW) Batch Capacity (L/H) Media Size (mm) Weight (kg) Dimension (mm)
LSM-5L 5 7.5 20-150 0.9-2.0 approx. 500 900x700x1550
LSM-15L 15 15 35-400 0.9-2.0 approx. 1000 1180x900x1600
LSM-20L 20 18.5 50-600 0.9-2.0 approx. 1100 1350x900x1700
LSM-20B 20 22 80-800 0.6-2.0 approx. 1100 1550x900x1700
LSM-30B 30 30 150-1000 0.6-2.0 approx. 1300 1700x1050x1850
LSM-50B 50 37/45 200-1200 0.6-2.0 approx. 1600 1750x1050x1950
LSM-60B 60 45 250-1500 0.6-2.0 approx. 1700 1950x1050x1950
LSM-100B 100 55 350-2400 0.6-2.0 approx. 2800 2240x1000x2200
LSM-150B 160 75 600-3500 0.6-2.0 approx. 3200 2800x1000x2200
LSM-300B 300 110 1000-9000 0.6-2.0 approx. 4500 3100x1200x2500
LSM-500B 560 160 1500-12000 0.6-2.0 approx. 6500 3800x1400x2800
LSM-1000B 1000 400 2500-15000 0.6-2.0 approx. 11000 4400x1600x2850
Applications
  • Titanium Dioxide
  • Industrial Coatings
  • Pigment/Dye/Color Paste
  • Pesticide
  • Automotive Paint
  • Metallic Paint
  • Electrophoretic Coatings
  • Rubber
  • Furniture Paint
  • Marine Coatings
  • Leather Paint
  • Carbon Black
  • Printing Inks
  • Anti-Corrosion Coatings
