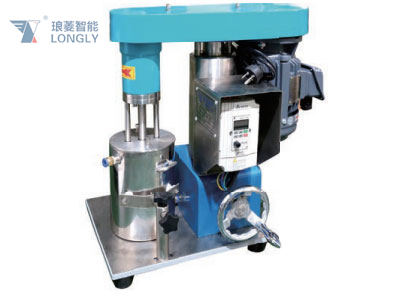

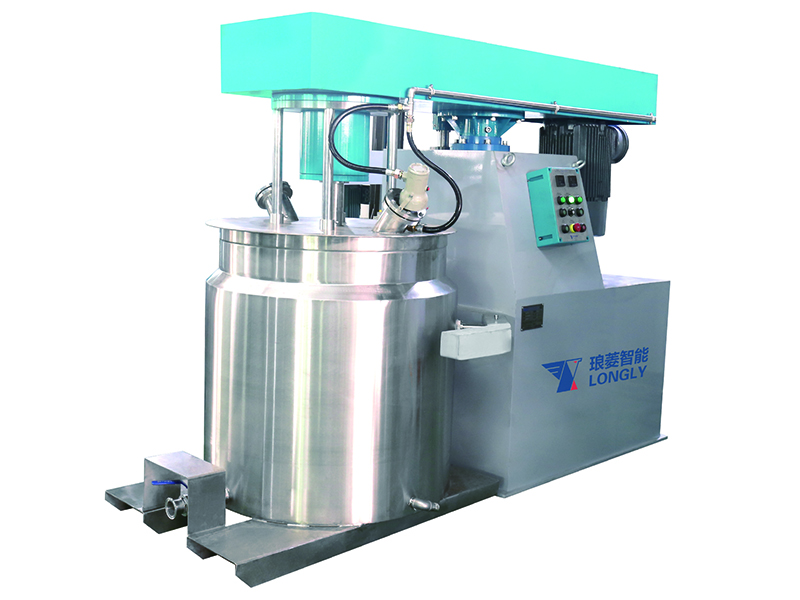

Submersible Basket Mill, LBM

Fineness: 5μm-25μm
Solvent: water-based, oil-based
Viscosity: ≤10,000cps
Grinding Bead Size: 1.6-5.0mm
Selectable Materials: wear-resistant alloy steel

Features
  • Individual design of basket rotation makes the grinding machine easy to clean and product changeover, thus saving labor force;

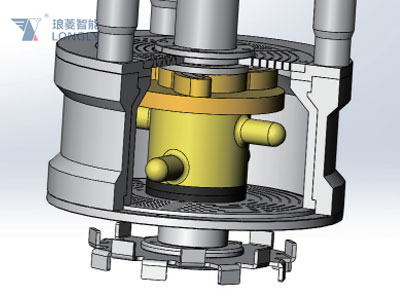

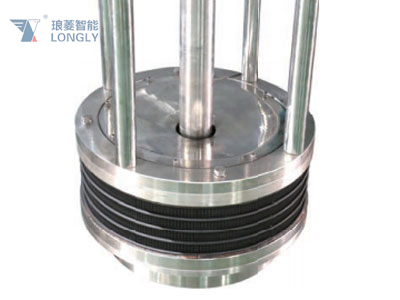

  • Grinding chamber is perfectly matched with basket, resulting in a high grinding efficiency;
  • Drive shaft and basket cover are reliably closed to prevent solvents from evaporation;
  • Since no pipes, pipes and mechanical seals are necessary, high efficiency and contamination-free production is achieved;
  • Suitable for batch-type production of various materials;
Submersible Basket Mill, LBM
Inquiry
  • Submersible Basket Mill, LBM
  • Submersible Basket Mill, LBM
  • Submersible Basket Mill, LBM
Specifications
Model Drive Motor (kW) Batch Capacity (L/H) Media Size (mm) Weight (kg) Lifting Method Dimension (mm)
LBM-T2 0.37 1-2 1.6-5.0 approx. 70 Manual/Pneumatic lifting 450x550x800
LBM-T3 3 20-35 1.6-5.0 approx. 350 Hydraulic lifting 700x1350x1600
LBM-T5 7.5 40-50 1.6-5.0 approx. 1500 Hydraulic lifting 750x1600x1900
LBM-T20 22 450-500 1.6-5.0 approx. 2000 Hydraulic lifting 1300x2700x2900
LBM-T40 37 850-1000 1.6-5.0 approx. 3500 Hydraulic lifting 1550x3300x3700
Applications
  • Pigment
  • Dye
  • Ink
  • Printing Inks
  • Coatings
  • Medicine
  • Cosmetics
  • Color Paste
