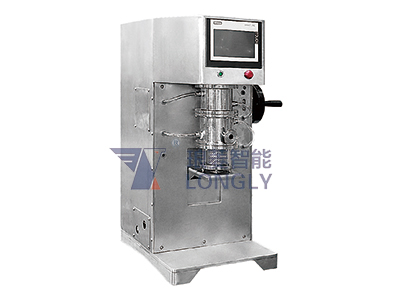

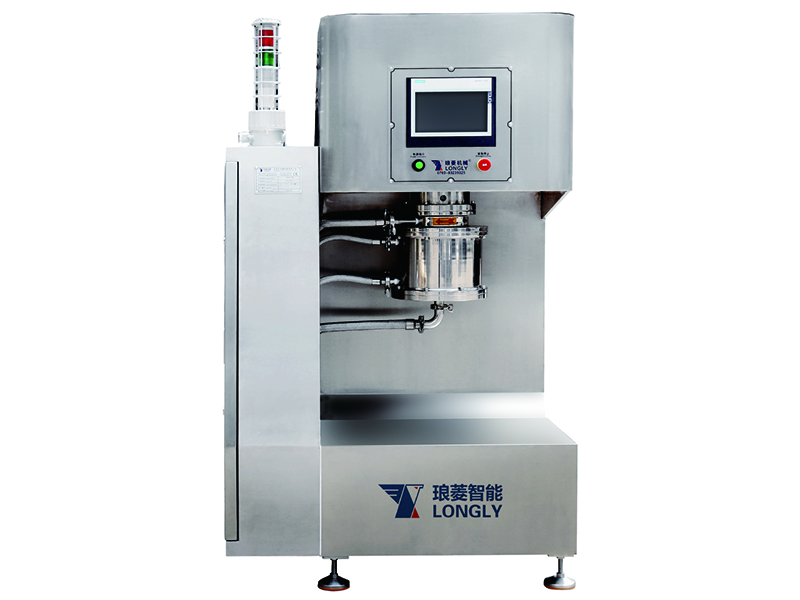

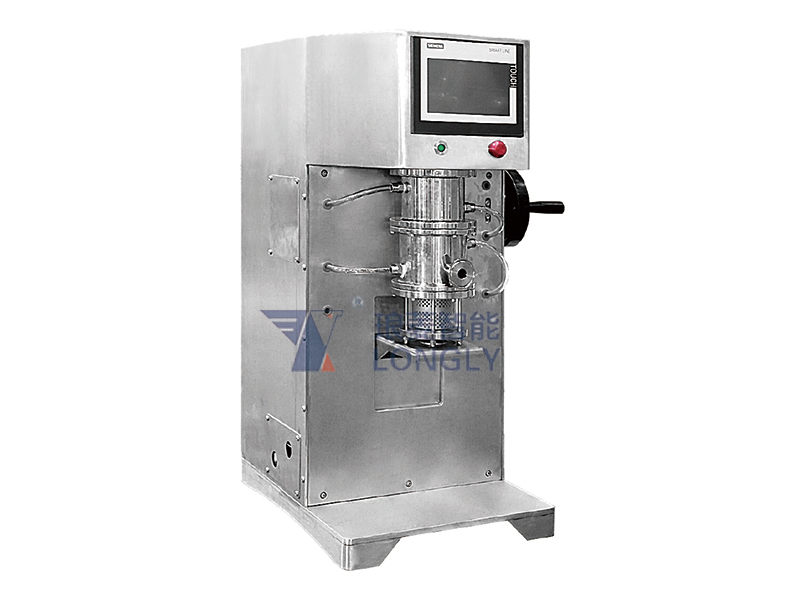

High-speed Disperser for Nanometer, LGF

This high speed disperser is a type of inline disperser for continuous operation, which is typically designed for efficient dispersing and homogenizing of nano-sized materials, which is widely used in various industries including new energy, coatings, cosmetics, food processing, LED light diffuser film, flexible PCB, etc. This dispersing system is especially suited for preparation of positive and negative electrode slurries for lithium ion batteries, as well as preparation of various nanomaterials such as aluminum oxide, lithium titanate, conductive carbon blacks and ternary composites in the nanometer scale.

Features
  • High frequency servo motor is used combining with compatible control system, enable that the dispersing system works stably and reliably while ensures a long service life;
  • Individual design of dispersion wheel and vessel offers an excellent dispersing efficiency, especially suitable for ternary composites, graphene and graphene oxide that are difficult to disperse;
  • Patented cooling system allows that the materials are completely cooled during high-speed dispersion, fully satisfying customers’ specific needs;
  • Cooling water of 5-7℃ is adopted for pre-cooling and dispersion cooling, ensuring the appropriate temperature of end products;
High-speed Disperser for Nanometer, LGF
High-speed Disperser for Nanometer, LGF High-speed Disperser for Nanometer, LGF
Inquiry

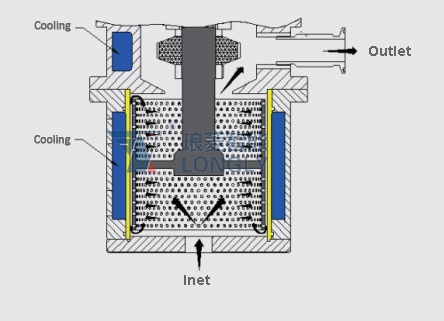

Schematic Diagram
High-speed Disperser for Nanometer, LGF

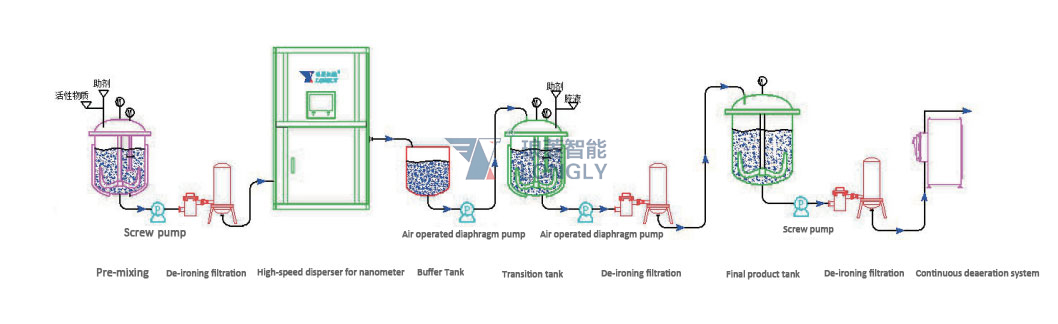

Continuous Production of Battery Slurry in Chart
High-speed Disperser for Nanometer, LGF
Specifications
Model Motor Power (kW) Throughput (L/H) Rotating Speed Control Method Sealing Gas Material of Dispersion Wheel Material of Dispersion Vessel Pump Weight (kg) Overall Dimension LxWxH (mm)
LGF-15 11 15 0-15000 Touch screen Dry gas or nitrogen gas SUS 304 /
high-performance
ceramic
Screw pump 200 500x600x1200
LGF-60 25 60 0-10000 850 900x1100x1900
LGF-240 55 240 0-6000 1000 1100x1200x2200
LGF-600 90 600 0-5000 1150 1300x1400x2400
LGF-900 120 900 0-4000 Diaphragm pump   1300 1300x1400x2400
LGF-1200 140 1200 0-3000 1550 1400x1500x2600
LGF-1500 150 1500 0-2600 1800 1500x1600x2800
