Powder Feeding & Conveying System

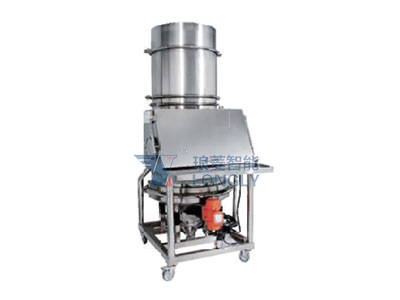

Bag dump station is suited for emptying of small volume bags of powder or particles in a dust-free manner, widely used in a variety of industries including pharmaceutical, food processing, fine chemistry and other industries.
- Entirely made of stainless steel, simple and robust structure;
- Negative pressure dust collection, efficiently preventing spreading of dust;
- Equipped with screen and vibrating unit, ensuring that material flows smoothly;
- Easy to operate, fast handling capacity;
- Output: 1500kg/h-2500kg/h
- Power: 1.5kW (380V/50Hz)
- Air Consumption: 1500 m³/h

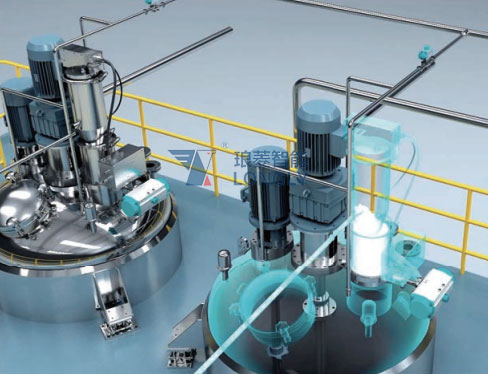

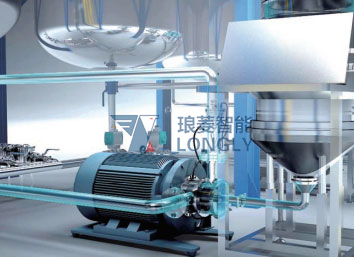

Dust-free disposal + inline dispersion

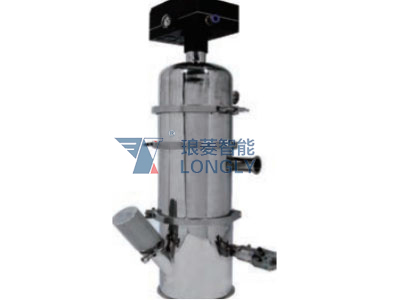

Vacuum conveyor is mainly designed for conveying powder or particles in sectors of food, pharmaceuticals, chemical products and other industries where high degree of safety and hygiene is critical.
- Built in a simple structure, easy to disassembly and assembly;
- Negative pressure conveying, no air leakage, ensuring high efficiency;
- Individual design of back-flushing, allowing material to be flowed smoothly;
- Fully automatic control, easy to operate.
| Model | Throughput (KG/H) | Vacuum Pressure (kPa) | Motor Power (kW) | Air Pressure (mPa) | Air Consumption (L/Min.) |
| LGZW-10L | 600 | -40~-50 | 3 | 0.4-0.6 | 10 |
| LGZW-20L | 1200 | -40~-50 | 4 | 0.4-0.6 | 10 |
| LGZW-30L | 2000 | -40~-50 | 5.5 | 0.4-0.6 | 12 |
| LGZW-40L | 3000 | -40~-50 | 7.5 | 0.4-0.6 | 2 |
Vacuum Conveying

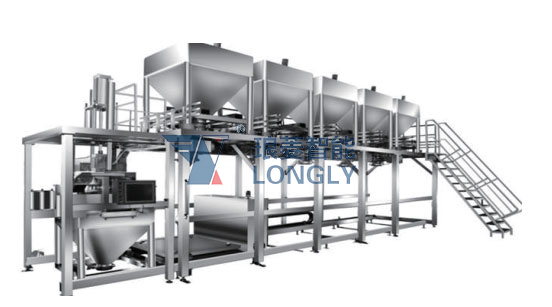

Dosing system is used to automatically weighing and dosing of powder or particles for industries including pharmaceutical, food processing, fine chemistry, etc.
- Materials transferring and dosing processes are accomplished in a fully enclosed structure, ensuring a dust-free processing;
- PLC system or computer control, automatic implementing of weighing and dosing according to specified recipe;
- Automatic data collecting, ensuring high accuracy of material type and weight;
- No need for manual intervention in the dosing area, greatly reducing manufacturing cost;
- Fasting dosing, high efficiency, energy saving and eco-friendly;
