Homogenizing Mixer, LH

This homogenizing mixer is typically designed for dispersing, emulsifying, homogenizing and dissolving of incompatible two-phase or multi-phase materials in a quick, uniform and delicate manner. It is an ideal option for clean workshops in fields of medicine, food, chemicals and new energy materials where contamination-free production is highly required.

Features
  • Dust-free homogenizing, no dust formation during operation, making solid-liquid dispersion, emulsification and dissolving tasks easier with high efficiency;
  • Achieving highly efficient production in a clean working environment;

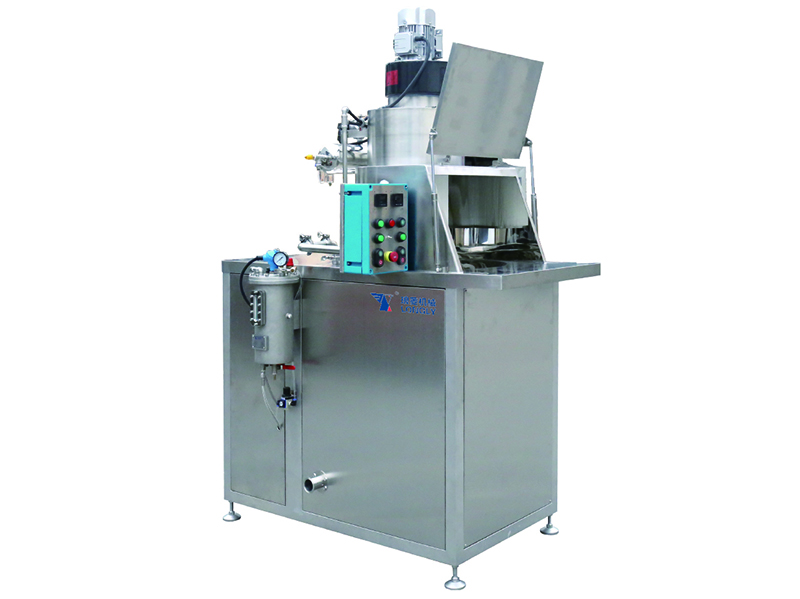

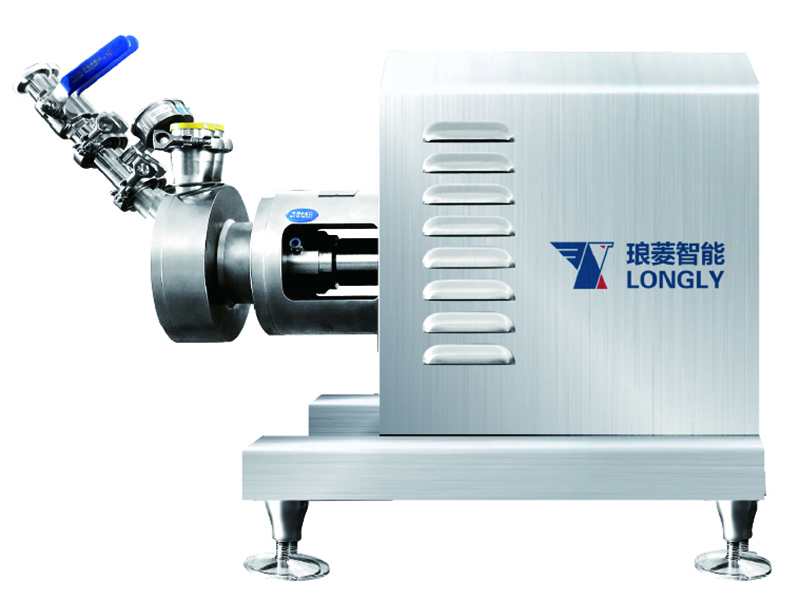

Homogenizing Mixer, LH
Homogenizing Mixer, LH Homogenizing Mixer, LH
Inquiry
Working Principle

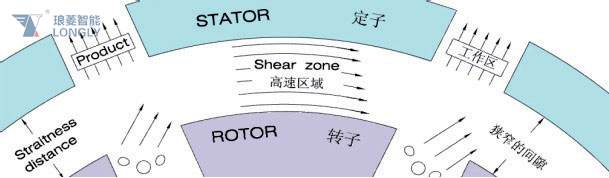

Strong centrifugal force produced by a high speed rotation of rotor enables materials to be sucked into dispersing chamber, and simultaneously high frequency shearing force is generated to allow the materials quickly dispersed, emulsified, homogenized and dissolved.

Homogenizing Mixer, LH
Specifications
Model Motor Power (kW) Rotation Speed (rpm) Flow Rate (m³/h)
TRL-C-100 1.5 2900 0-1.5
TRL-C-120 2.2 2900 0-3
TRL-C-140 4 2900 0-4
TRL-C-150 5.5/7.5 2900 0-5
TRL-C-165 7.5/11 2900 0-8
TRL-C-180 11/15 2900 0-12
TRL-C-200 15/18.5 2900 0-18
TRL-C-220 22 2900 0-25
Applications
  • Battery Electronics
  • Coatings
  • Lithium Iron Phosphate
  • Medicine
  • Pesticide
Other Products
    1. Homogenizer, LRH
    2. Homogenizer, LRH

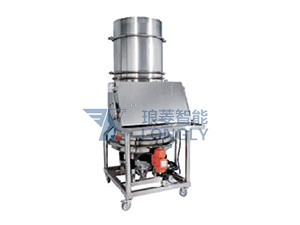

    1. Powder Feeding & Conveying System
