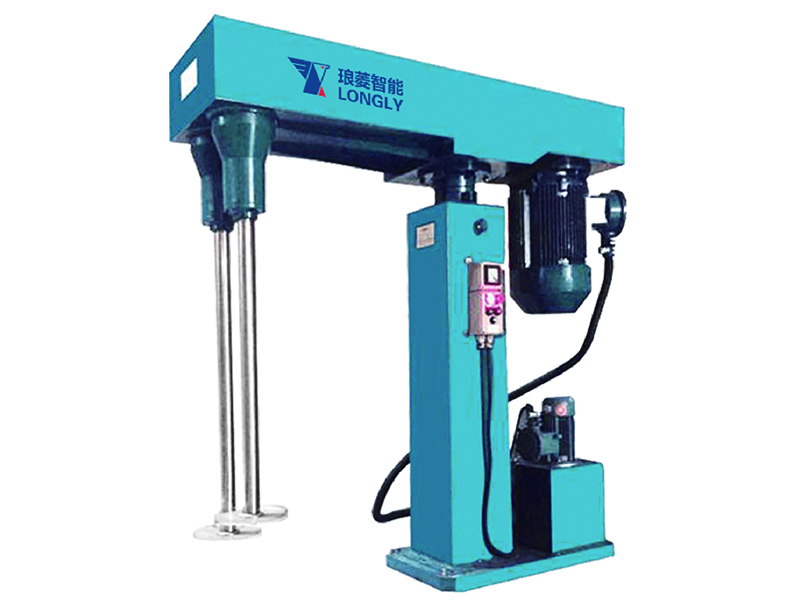

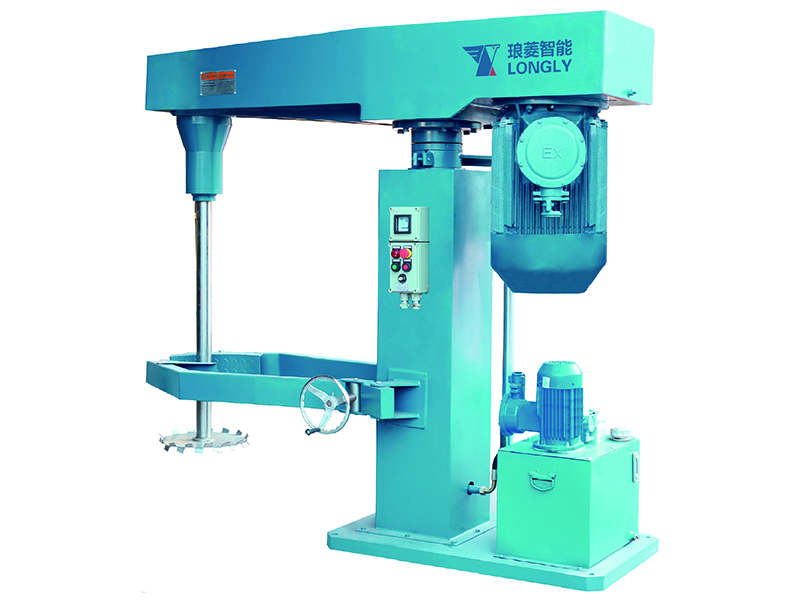

High-speed Disperser, LFS

High-speed disperser, also called high speed dissolver, is an industrial mixer commonly used to dissolve powders or solid particles into liquids. High speed dispersers are frequently utilized in a variety of industries including coatings, chemicals, paints, inks, etc.

Features

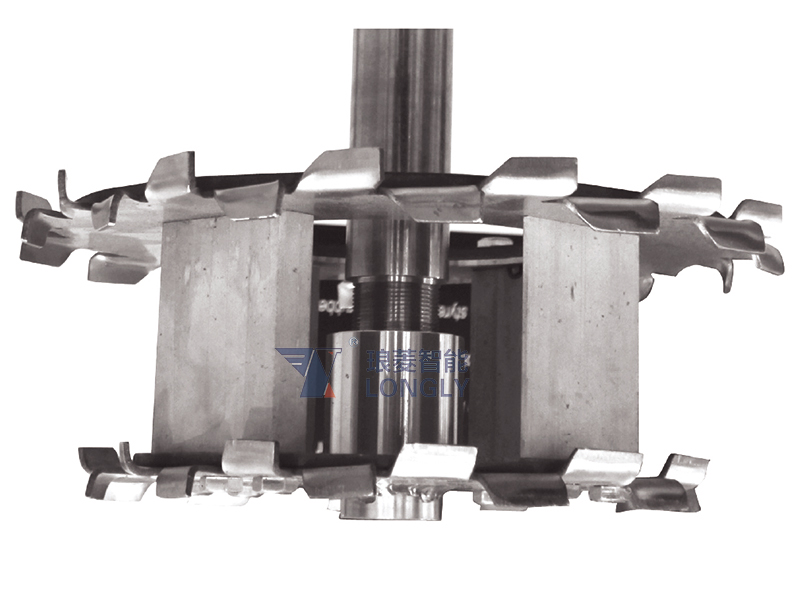

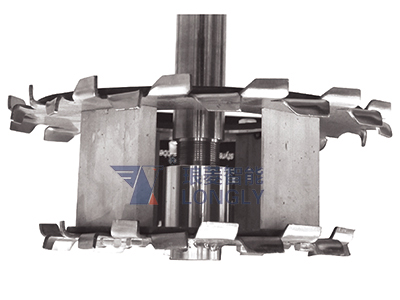

  • Multiple designs of disc blades are available per specific needs;
  • Hydraulic drive system;
  • The height of the dispersing disc blade (to vessel bottom) is adjustable;
  • Vessel cover (for vacuum condition) and rotating scraper are optional;
High-speed Disperser, LFS
High-speed Disperser, LFS High-speed Disperser, LFS High-speed Disperser, LFS
Inquiry
Specifications
Model Motor Power (kW) Lifting Range (mm) RPM (r/min) Disk Diameter (mm) Stirring Capacity (L) Weight (kg) Dimension (mm)
LFS-5HP 4 800 1500 180 100-200 750 1630x500x1555
LFS-10HP 7.5 1000 1500 250 200-400 980 1700x500x1680
LFS-15HP 11 1000 1200 280 400-600 1120 1750x500x1700
LFS-20HP 15 1100 1100 300 600-1000 1410 2015x600x1765
LFS-25HP 18.5 1200 1000 330 800-1200 1720 2050x650x1800
LFS-30HP 22 1200 1000 350 1000-1500 18600 2050x700x2200
LFS-40HP 30 1400 1000 380 1200-2000 2580 2100x800x2300
LFS-50HP 37 1400 900 400 1400-2500 2740 2200x900x2500
LFS-75HP 55 1600 800 450 2500-30000 2000 2600x1200x2700
LFS-1000HP 75 1700 750 500 3000-3500 2300 2750x1200x2700
Applications
  • Coatings
  • Pigments
  • Papermaking
  • Dyes
  • Inks
  • Many Others
Other Products

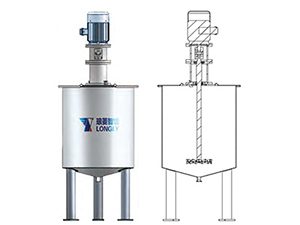

    1. Mixer
    2. Mixing Tank

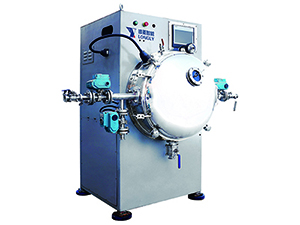

    1. Vacuum Deaerator, LTP
