Laboratory Agitator Bead Mill, NT-V1

Fineness: 100nm-1μm
Grinding Bead Size: 0.2-1.4mm
Filling Degree: 70%-90%
Separation System: large area screen separator
Separator Gap Size: 0.1-0.15mm (selectable)

Laboratory agitator bead mill is typically developed for research and development tasks, used in scientific academic applications including small-scale testing of high-tech products, raw material quality control, formula verification and process optimization. This grinding mill is suitable for grinding of water-based materials, solvent-based materials, and materials that are vulnerable to contamination. The laboratory agitator bead mill is characterized by remarkable flexibility, has been widely used in many universities and research institutes.

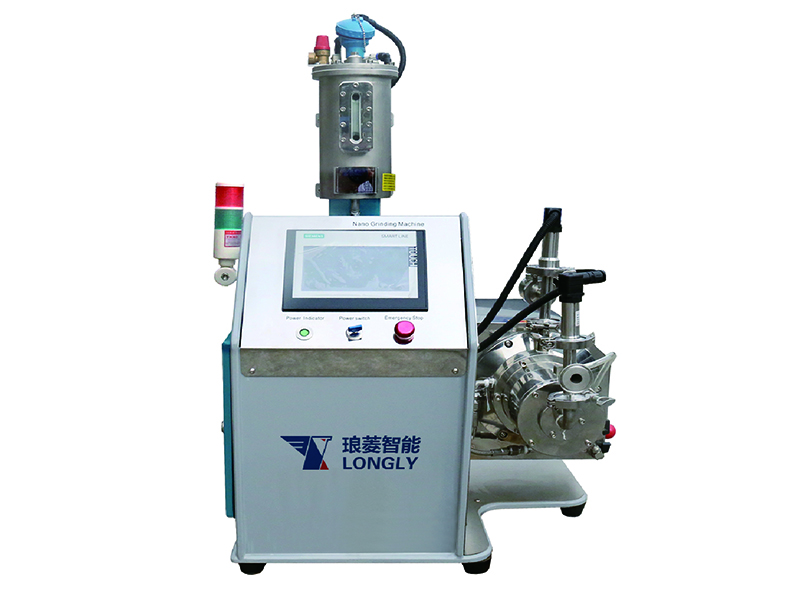

Laboratory Agitator Bead Mill, NT-V1L
Inquiry
Laboratory Agitator Bead Mill, NT-V1L
Features
  • High speed dispersion, suitable for grinding and dispersing of particles with different viscosity from initial fineness of micrometer down to nanometer range;
  • Self-pumping, minimum batch volume is 300ml, can be adjusted flexibly per batch size;
  • Flexible mode of operation, suitable for continuous operation, ensuring lowest loss of product;
  • Grinding media is available in a range of 0.2-1.4mm, the smallest particle can be milled down to 30nm;
  • Grinding chamber is disassemble, easy to clean and transport;
  • Can be made of zirconium oxide, ceramic, silicon carbide and PU material to prevent metallic contamination;

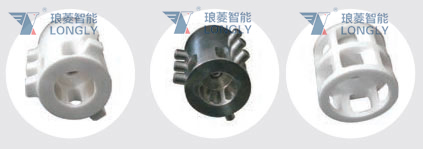

  • Various rotors are configured in accordance with specific grinding requirements;
Applications
  • Ceramic Ink
  • Magnetic Materials
  • Electronic Paste
  • Non-Metallic Mineral Powder
  • Thermal Transfer Inkjet Ink
  • Nano Pigment
  • Lithium Iron Phosphate
  • Medicine
  • Alumina
  • Zirconium Silicate
  • Cosmetics
  • Many Others
