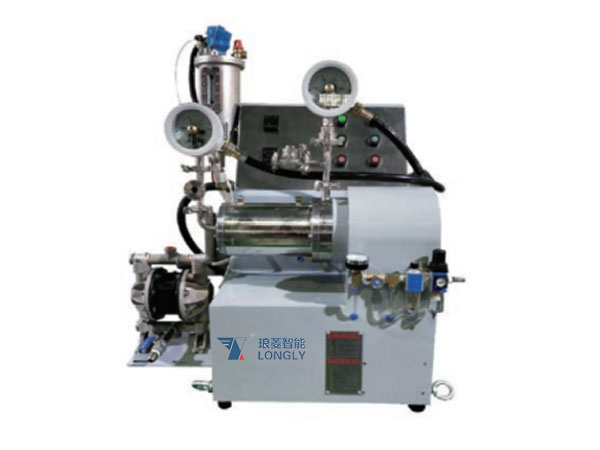

Laboratory Agitator Bead Mill, LSM-1.4L

Grinding Chamber Volume: 1.4L
Batch Capacity: 3-5L/H
Grinding Media Size: 0.4-2mm
Rotation Speed: 1800r/min
Drive Motor: 3.7kW
Dimension (LxWxH): 780x650x820mm

LSM-1.4L laboratory agitator bead mill is designed for grinding micro-scale products. It has an enclosed-structure and used for ultra-fine processing of solids in liquids through wet grinding technology. Grinding media is available in size range of 0.4mm-2mm, it is possible to accomplish highly efficient grinding and dispersing within a short time, suitable for grinding and dispersion tasks in multi-pass or circulation operation. The laboratory agitator bead mill is characterized by uniform particle size distribution, excellent temperature control and low energy consumption.

Features
  • Applicable for micron laboratory;
  • Disc agitator, fineness ≤5μm;
  • Dynamic separation system, high flow;
  • Grinding bead size ranges from 0.4mm to 2.0mm;
  • High efficiency;
  • Grinding result enables scale-up to actual production machine;
Laboratory Agitator Bead Mill, LSM-1.4L
Inquiry
Applications
  • Ceramic Ink
  • Magnetic Materials
  • Electronic Paste
  • Non-Metallic Mineral Powder
  • Thermal Transfer Inkjet Ink
  • Nano Pigment
  • Lithium Iron Phosphate
  • Medicine
  • Alumina
  • Zirconium Silicate
  • Cosmetics
  • Many Others
