Horizontal Bead Mill, LDM

Grinding Chamber Volume: 5L-100L
Fineness: 1μm-10μm (for D Type and G Type), 5μm-15μm (for C Type)
Solvent: water-based, oil-based
Viscosity: ≤20,000cps for D Type, ≤40,000cps for C Type, ≤60,000cps for G Type
Grinding Bead Size: 0.8-2.0mm (for C Type and G Type), 0.3-2.0mm (for D Type)
Selectable Materials: tungsten carbide, polyurethane, zirconium oxide, silicon carbide

Features

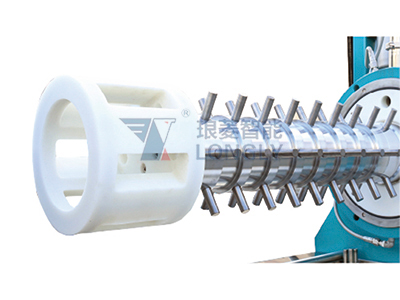

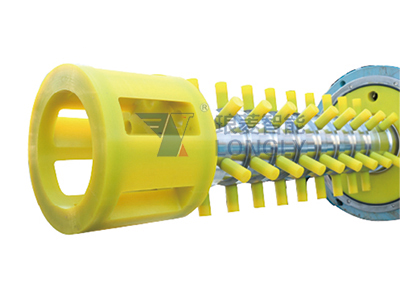

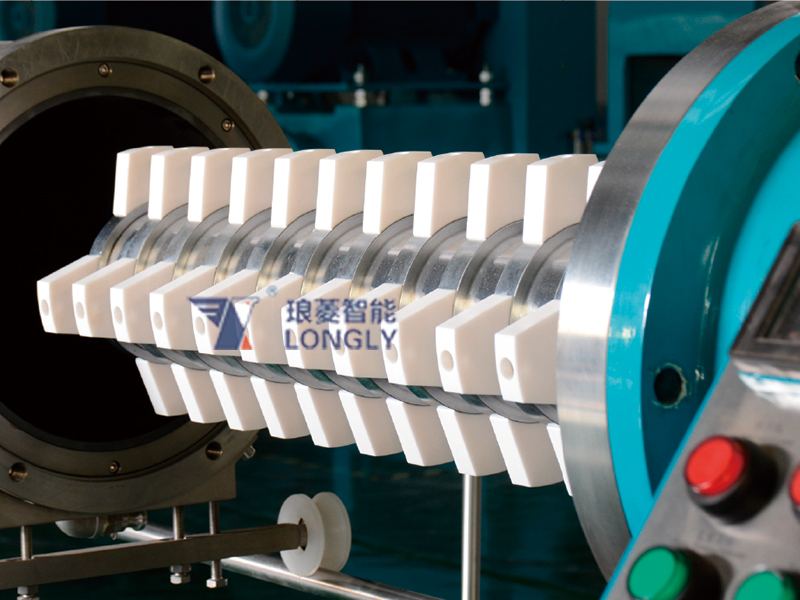

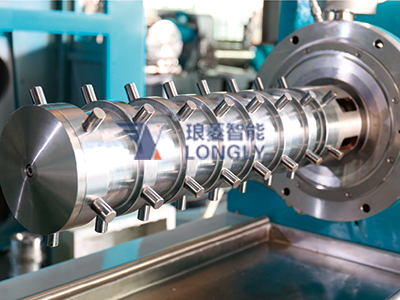

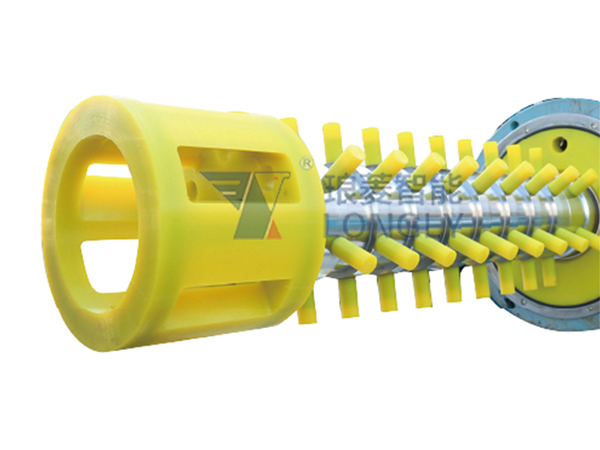

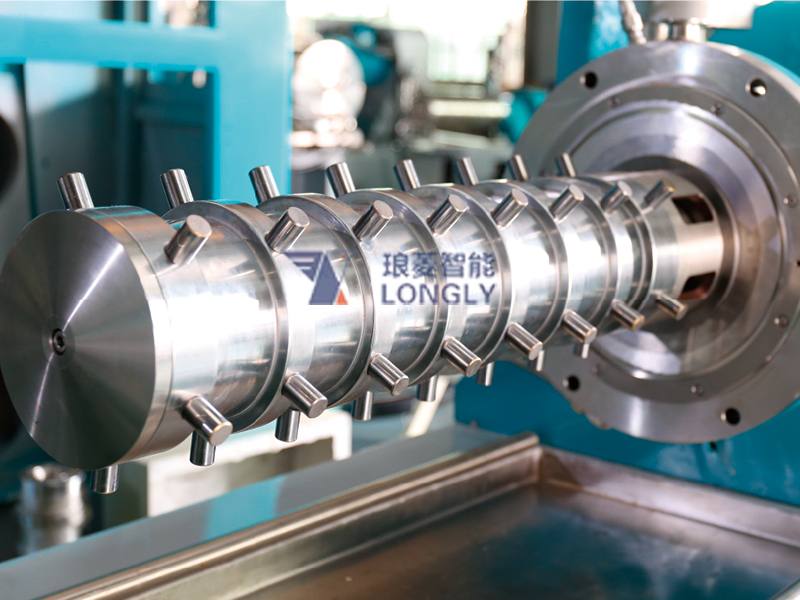

  • Pin agitator strengthens the impact and shearing forces of grinding beads on particles, greatly improving grinding efficiency;
  • Suitable for grinding materials that are difficult to disperse;
  • High grinding efficiency, corrosion resistance, no discoloration;
  • Rotor and front end cover are coolable, with excellent heat dissipation, applicable for grinding of heat or temperature sensitive products;
  • Overpressure protection device is equipped to ensure constant pressure in the grinding chamber;
  • Automatic protection system for electrical components;

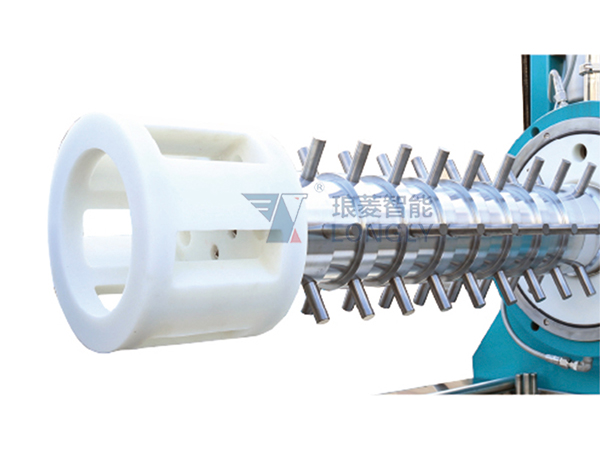

  • Patented dynamic screen separation system for separating grinding beads, high flow without blockages;
Horizontal Bead Mill, LDM
Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM Horizontal Bead Mill, LDM
Inquiry
Specifications

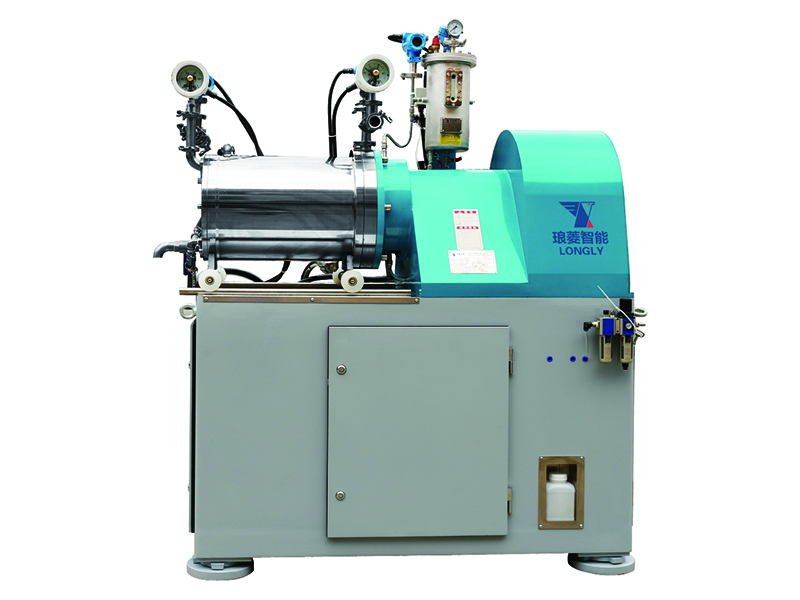

G Type —— Suitable for high viscosity materials
Model Grinding Chamber Volume (L) Drive Motor (kW) Batch Capacity (L/H) Media Size (mm) Weight (kg) Dimension (mm)
LDM-20G 20 45 50-600 0.8-2.0 approx. 1600 1730x900x1950

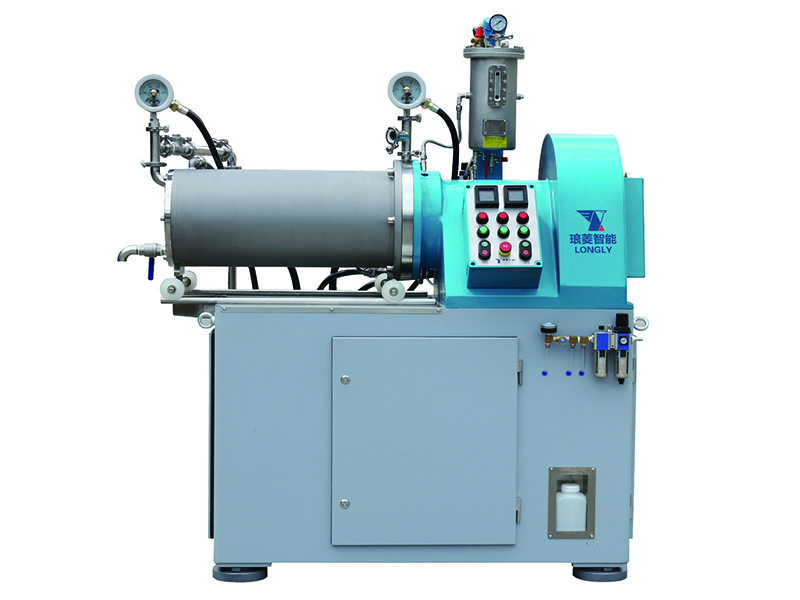

C Type —— Suitable for medium & low viscosity materials
Model Grinding Chamber Volume (L) Drive Motor (kW) Batch Capacity (L/H) Media Size (mm) Weight (kg) Dimension (mm)
LDM-5C 5 11 30-200 0.8-2.0 approx. 900 1500x950x1750
LDM-10C 10 15 40-400 0.8-2.0 approx. 1000 1500x950x17500
LDM-20C 20 22/30 50-600 0.8-2.0 approx. 1200 1700x1050x1900
LDM-30C 30 30/37 100-900 0.8-2.0 approx. 1300 1750x1050x1950
LDM-50C 50 45 300-800 0.8-2.0 approx. 1700 1950x1050x1950
LDM-60C 60 45 200-1200 0.8-2.0 approx. 1800 2000x1050x1950
LDM-100C 100 75/90 300-2000 0.8-2.0 approx. 3000 2500x1200x2200

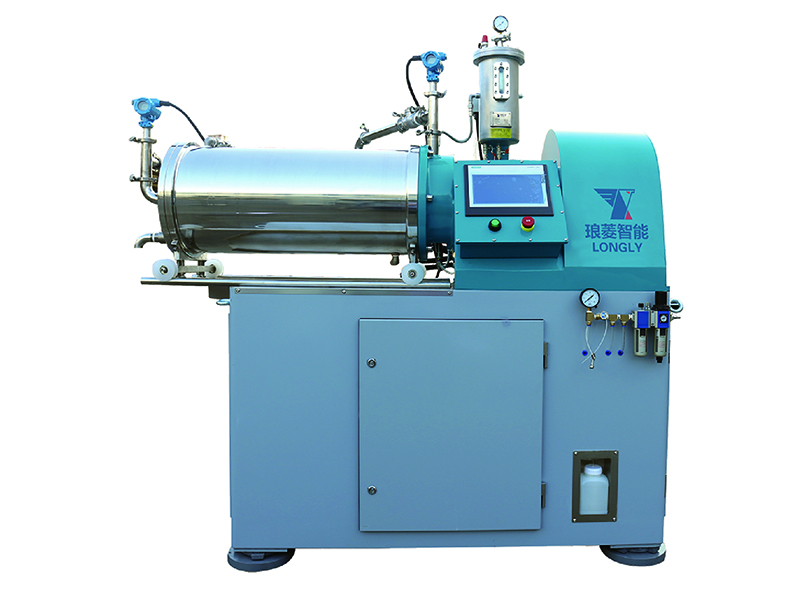

D Type
Model Grinding Chamber Volume (L) Drive Motor (kW) Batch Capacity (L/H) Media Size (mm) Weight (kg) Dimension (mm)
LDM-5D 5 11 30-200 0.3-2.0 approx.900 1500x950x1750
LDM-10D 10 15 40-400 0.3-2.0 approx.1000 1500x950x1750
LDM-20D 20 22/30 50-600 0.3-2.0 approx.1200 1700x1050x1900
LDM-30D 30 30/37 100-800 0.3-2.0 approx.1300 1750x1050x1950
LDM-50D 50 37/45 200-1000 0.3-2.0 approx.1700 1950x1050x1950
LDM-60D 60 45 200-1200 0.3-2.0 approx.1800 2000x1050x1950
LDM-100D 100 75/90 300-2000 0.3-2.0 approx.3000 2500x1200x2200
Applications
  • Automotive Paint
  • Furniture Paint
  • Color Pastes
  • Dyes
  • Magnetic Materials
  • Industrial Paint
  • Ink
  • Pigment
  • Pesticide
